A beautifully made gate needs more than great craftsmanship, it needs to fit your property perfectly.
Whether you’re upgrading your driveway entrance for security, privacy or aesthetic appeal, accurate measuring is the first essential step in ensuring your gate operates smoothly and lasts for years.
Taking some simple measurements of your driveway is a helpful way to get started when planning a new gate. Even rough figures will give you a much clearer idea of what sizes and styles are suitable for your property.
Taking measurements also helps when comparing prices or using planning tools, like Heartlands' Gate Configurator. While final measurements will always be taken professionally before installation, having your own rough figures early on makes researching your options much easier.
Step 1: Measure the Width
The width of your driveway entrance determines the size of gate you can consider, which affects both appearance and practical access for vehicles and pedestrians. Measuring correctly helps you shortlist realistic gate options and avoid costly customisations.
Here's how to measure the width:

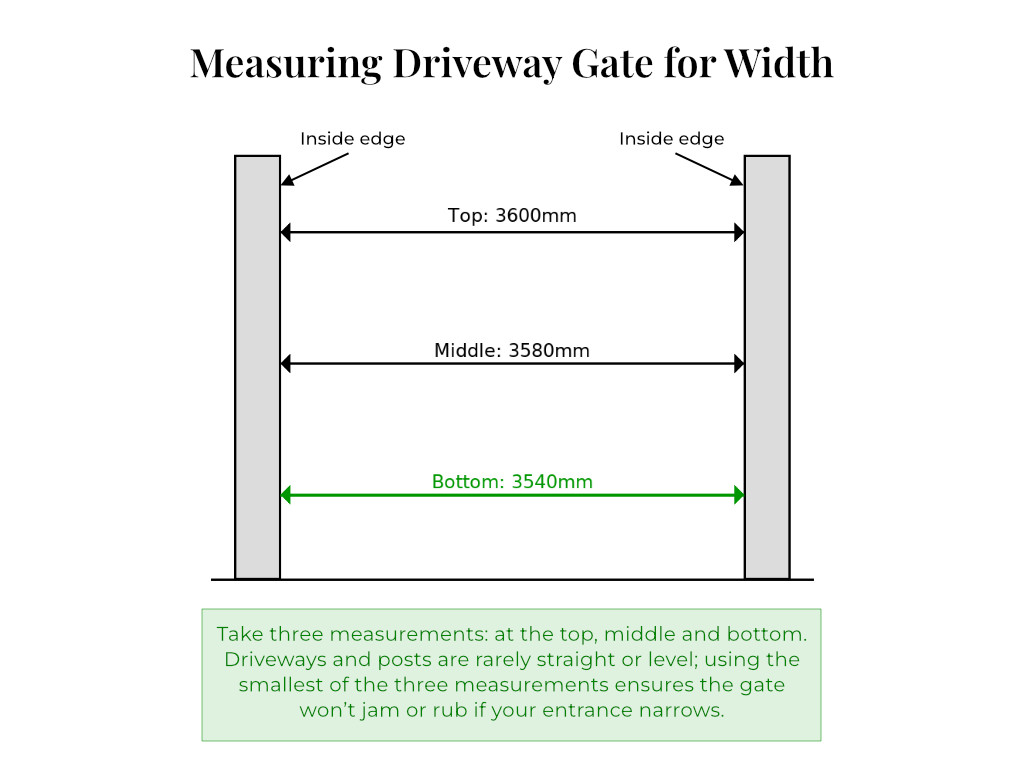

- Start by measuring the distance between the inside faces of the posts or walls at the point where your gate will be positioned. This measurement is called the "clear opening width", as it represents the usable space the gate will span.
- Take three measurements: one at the top, one in the middle and one near the ground. This is necessary because driveways and posts often aren't perfectly straight or level. By taking three points, you capture any tapering or narrowing.
- Use the smallest of the three measurements. This ensures the gate won’t jam or rub if your driveway narrows at any point.
Account for operational clearances:
- For swing gates, subtract approximately 10mm-20mm on each side to allow smooth, unhindered movement, so the gate doesn't catch on the posts.
- For sliding gates, you usually use the full width between posts because the gate slides sideways. However, you need to ensure there’s enough lateral space alongside the driveway for the gate to slide fully open.
Consider mounting style:
- If the gate will be mounted between the posts, your gate width is the clear opening minus your clearance gaps.
- If it will be mounted on the back (rear face) of the posts, we recommend planning for gates that are wider than the clear gap between your posts. This allows for the small overlap on each side, ensuring better coverage and a cleaner visual finish.
- If you have additional walls projecting at 90 degrees from your gateposts, known as return walls, you may need to reduce the overall gate width to prevent these features from obstructing the gate's movement. Return walls can limit how far a gate can open or interfere with where hinges are placed, so it's important to factor them into your planning.
- For double gates, simply take your final width and divide it by two to determine the width of each gate leaf.
Step 2: Consider the Height
While width is the most important measurement when sizing a driveway gate, it’s also useful to consider the height to help you decide what kind of look you want and how much privacy the gate will offer.
Here's how to approach it:
- Think about your preferred gate height: do you want the gate to feel low and open or taller for privacy and presence? Your chosen height will affect both appearance and function.
- Measure the height of any posts or pillars where the gate will be installed. This is useful because many gates are designed to either match the height of the posts or sit slightly below them. If you’re installing new posts, you can decide the combination that looks best.
- Check the height of any nearby fencing or walls. Aligning the gate height with existing features keeps the entrance looking balanced and cohesive from the street.
- For curved designs, like bow-top or swan-neck gates, it’s helpful to consider both the highest and lowest points of the gate itself. This helps you understand how the gate’s height will interact with surrounding features like posts and fences. For example, the highest point could be in the middle of the gate, while the lowest points are at the sides where the gate meets the posts.
Tip: Always measure from the finished ground level, especially if you plan to add paving or landscaping later, as this will affect the final installed height.

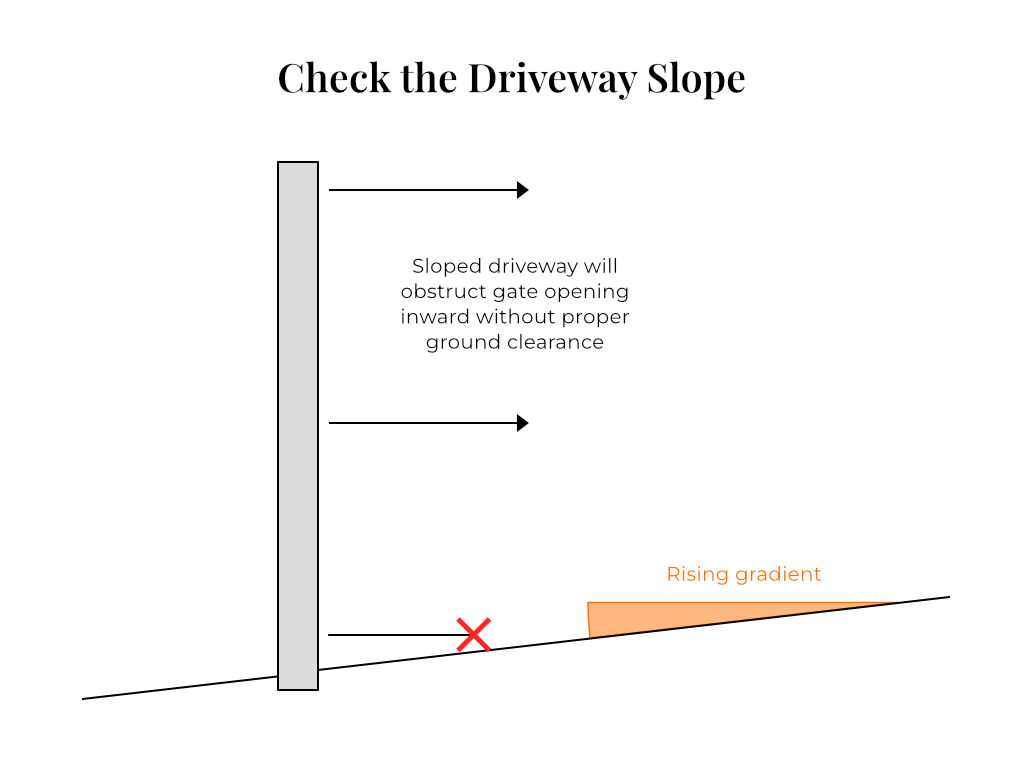

Step 3: Check the Driveway Slope and Obstructions
Before finalising your gate size, it’s important to check whether your driveway is level and clear of obstacles. The slope of the driveway and any obstructions around the gate area can affect the type of gate you can choose, how much clearance you need and how the gate will function.
- Use a spirit level to check for any slope.
- Inward-opening gates need more ground clearance on rising driveways.
- Sliding gates need a clear, level run-off area beside the driveway.
- Look for obstructions like raised kerbs, drain covers or wall features that could limit movement.
Choosing the Right Gate Style for Your Measurements
Your measurements will guide the best style of gate and help you determine which type of gate is most practical and visually appropriate for your driveway. Different properties and layouts often call for different gate configurations and understanding the space you have available allows you to narrow down the best options.
Taking the time to measure your space also helps you understand potential limitations, such as how much room you have for gate swing or whether a sliding gate might be necessary due to a lack of clearance.
Additionally, the dimensions of your entrance influence the cost of the gate. Having a good sense of your driveway's width and height can give you a more realistic idea of price ranges and help you plan your project more effectively before getting professional advice.
Some top tips are:
- Swing gates are great for flat driveways with enough opening space.
- Sliding gates are ideal where space is tight or the driveway slopes steeply.
- Double gates split the width, needing less swing space per side.
- Single gates suit smaller or pedestrian entrances.
Professional Measuring with Gate Fitting
At Heartlands Metal Craft, we take care of everything. Our professional fitting service includes precise measuring, expert advice on gate styles and full installation, ensuring a perfect fit every time.
Our skilled team:
- Measures your driveway on-site, accounting for every detail.
- Calculates clearances and hinge allowances accurately.
- Recommends the ideal gate design based on your layout.
- Installs your gate professionally, ensuring smooth operation and long-term durability.
Even though we’ll take care of precise measurements during fitting, taking your own initial measurements can be very useful during your own research. Measuring your driveway, even approximately, helps you understand what sizes are realistic for your space, narrow down options and get a clearer idea of costs before making decisions.
